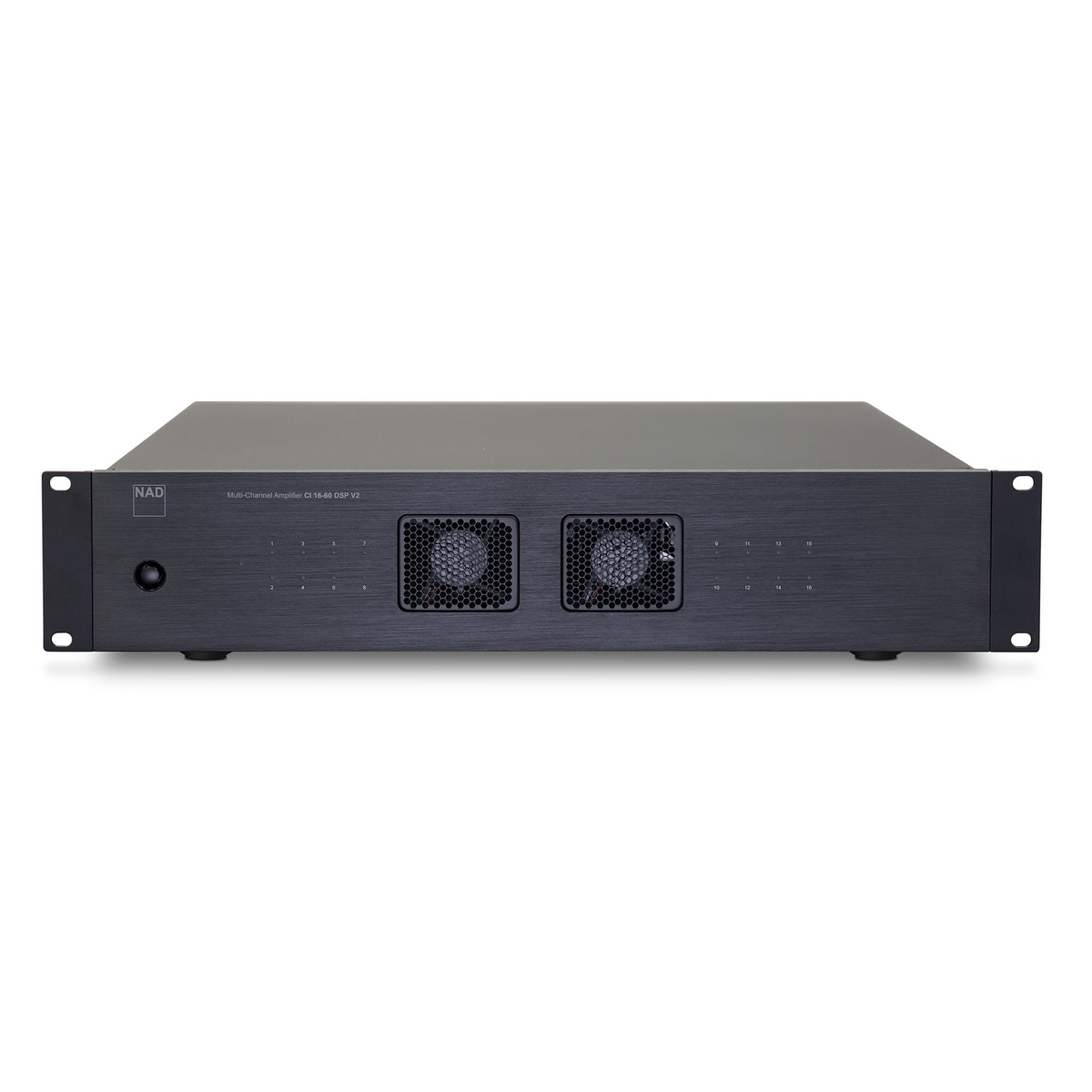

NAD CI 16-60 DSP v2 Multi-Channel Amplifier

The NAD CI 16-60 DSP v2 delivers sixteen channels of efficient HybridDigital amplification in a single 1U rack chassis – ideal for large multiroom installations with many small zones, for example in a single-family home with numerous in-ceiling speaker zones.

Why the CI 16-60?

Built-in DSP allows fine tuning of every individual channel, and all channel pairs can also be bridged if a zone needs more power. The unit is built for continuous, professional operation and saves significant rack space compared with several smaller amplifiers.

Technical Data

• Power: 60 W/channel @ 8 Ω, 65 W @ 4 Ω (all channels, 0.05 % THD); bridged 140 W @ 8 Ω
• Frequency response: ± 1 dB (20 Hz–20 kHz); channel separation 60 dB @ 1 kHz
• THD: 0.05 %; S/N: 80 dB(A)
• Channels: 16, bridgeable in pairs
• Dimensions: 483 × 100 × 435 mm (1U)
• Weight: 10.3 kg
• Standby: 0.5 W

Frequently Asked Questions

How many zones does one CI 16-60 cover?

Regularly 16 independent zones at 60 watts each – enough for most in-ceiling speaker setups in living spaces, bathrooms or utility rooms. If you need more power in one zone, a channel pair can be bridged, which reduces the number of zones accordingly.

How does the CI 16-60 differ from the CI 8-120?

The CI 16-60 has twice as many channels at lower power per channel – ideal for many small zones with in-ceiling speakers. The CI 8-120 is better suited to fewer zones with more demanding speakers.

Why buy the NAD CI 16-60 from HD Zürisee?

Because a 16-channel installation needs careful planning of zones, wiring and control. Our technician Maurizio Nardiello plans and installs your system. Call us on +41 44 680 22 00, email shop@hdzuerisee.ch or reach us on WhatsApp 076 534 22 00 (text only, no calls).

Goes well with

From the same range, more NAD CI modules fit well, along with the whole Bluesound multiroom world.
